Model Whirlpool 1195^1A GAS COOKTOP – Common Parts & Diagrams
03 - SECTION
01 - SECTION
04 - SECTION
02 - SECTION
Common parts from model Whirlpool 1195^1A GAS COOKTOP
WPL ARI7429A42 WPL ARI7429A42 Contact Us For Availability
2

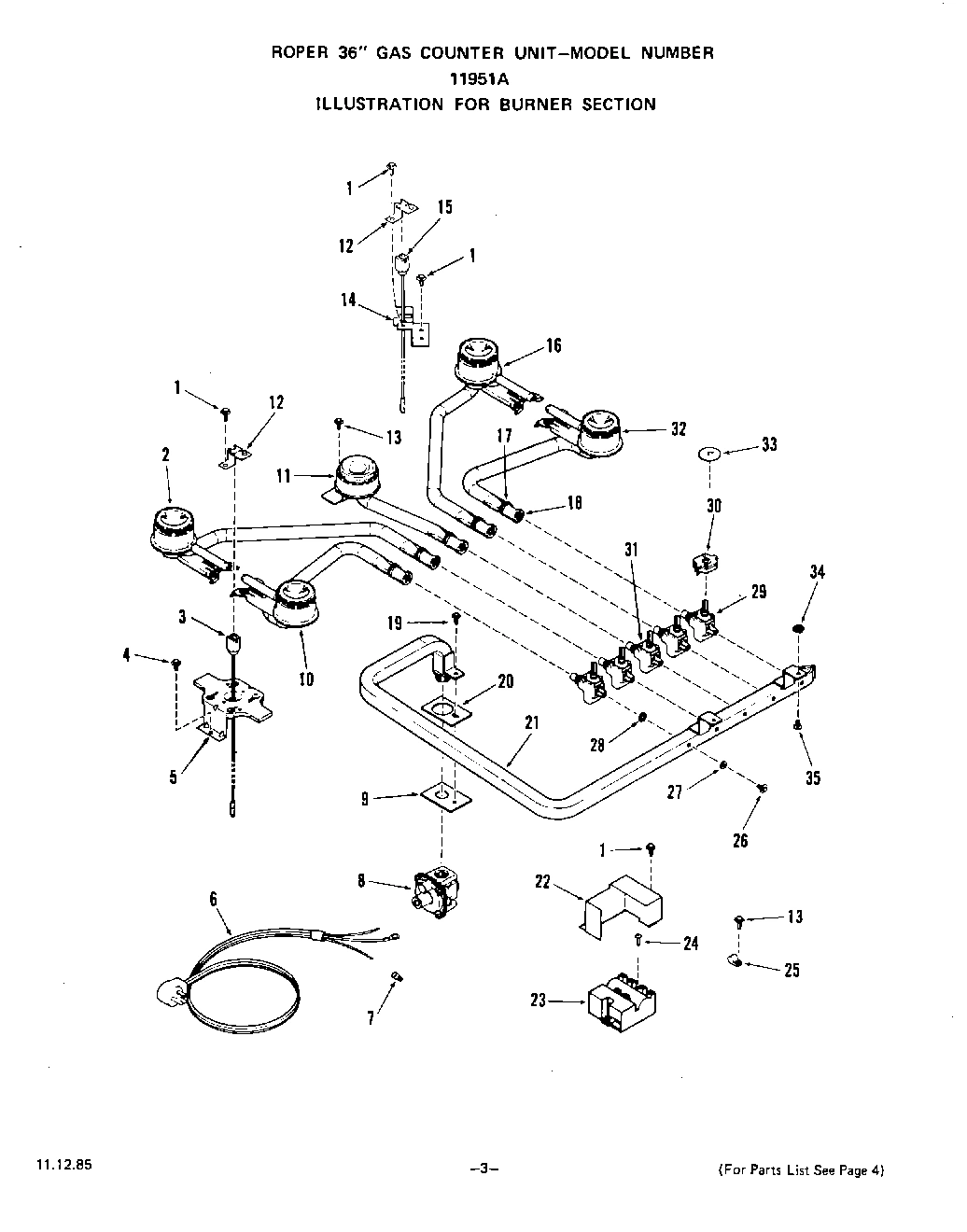

Lt. Rear Top Burner (Inc. Keys 17 & 18) WPL 310301 Contact Us For Availability
2
Aeration Pan (4 Req) WPL 310385 Contact Us For Availability
3
Right WPL 312454 Contact Us For Availability
3
Left WPL 312455 Contact Us For Availability
3
Electrode-Spark Igniter WPL ARI7427A79 Contact Us For Availability
3
Griddle Plate WPL 321745 Contact Us For Availability
4
Baffle-Griddle Burner WPL 329771 Contact Us For Availability
5
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
5
Right WPL 310290 Contact Us For Availability
5
Left WPL 311501 Contact Us For Availability
5
Support-Top Burner WPL ARI7428A40 Contact Us For Availability
6
Cord w/Plug WPL 309854 Contact Us For Availability
6
Keps Nut 8-32 WPL 239764 Contact Us For Availability
7
Wire Connector WPL 66763 Contact Us For Availability
7
Speed Nut 10-32 WPL 24345 Contact Us For Availability
8
Pressure Regulator WPL 324529 Contact Us For Availability
8
Insulation WPL 331502 Contact Us For Availability
9
Seal-Manifold WPL 312735 Contact Us For Availability
9
Screw 8-32x1/4`` WPL 322183 Contact Us For Availability
10
Lt. Front Top Burner (Inc. Keys 17 & 18) WPL 310303 Contact Us For Availability
10
Burner Box WPL 332670 Contact Us For Availability
11
Griddle Top Burner (Inc. Keys 17 & 18) WPL 329757 Contact Us For Availability
11
Shield-Burner Box WPL 333110 Contact Us For Availability
12
Bracket-Spark Igniter (3 Req) WPL 312453 Contact Us For Availability
13
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
14
Support-Griddle Electrode WPL 325558 Contact Us For Availability
14
Catch (2 Req) WPL 24667 Contact Us For Availability
15
Electrode-Spark Igniter (Griddle) WPL 312598 Contact Us For Availability
15
Clamp WPL 285945 Contact Us For Availability
16
Rt. Rear Top Burner (Inc. Keys 17 & 18) WPL 310300 Contact Us For Availability
16
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
17
Adjustment Screw-Air Shutter WPL 310911 Contact Us For Availability
17
Support Rod-Main Top WPL 315379 Contact Us For Availability
18
Air Shutter WPL 310910 Contact Us For Availability
18
Screw 32x3/8`` WPL 239113 Contact Us For Availability
19
Screw 10 - 32 x 1/2`` WPL 102430 Contact Us For Availability
19
Strike (2 Req) WPL 299784 Contact Us For Availability
20
Retainer-Manifold Seal WPL 312736 Contact Us For Availability
20
Bezel-Control WPL 302899 Contact Us For Availability
21
Manifold Pipe WPL 323389 Contact Us For Availability
21
White WPL 325562 Contact Us For Availability
21
Coffee WPL 325563 Contact Us For Availability
21
Avocado WPL 325564 Contact Us For Availability
21
Wheat WPL 325565 Contact Us For Availability
21
Almond WPL 325566 Contact Us For Availability
21
Chrome WPL 325569 Contact Us For Availability
21
Platinum WPL 329772 Contact Us For Availability
21
Toast WPL 329773 Contact Us For Availability
21

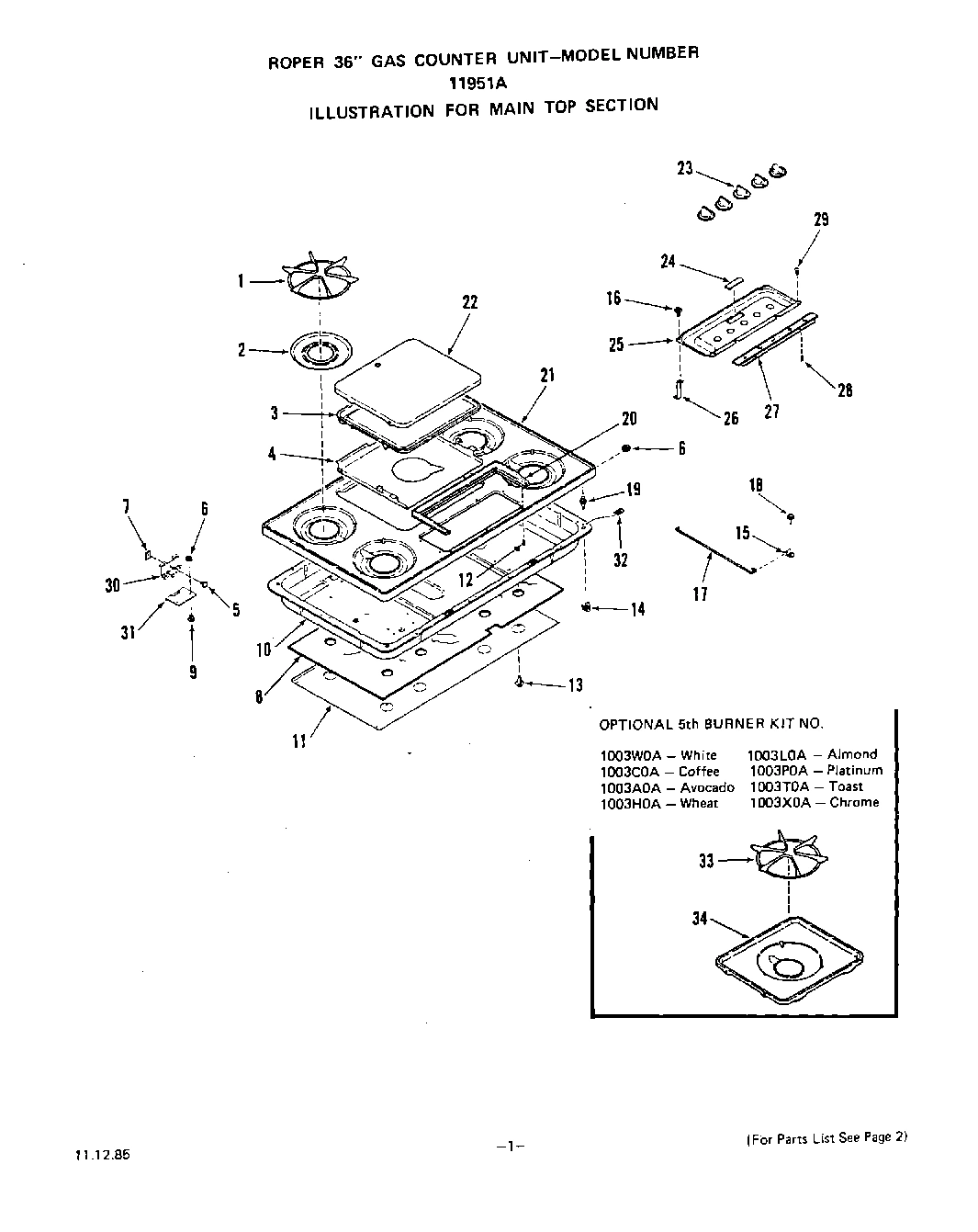

Main Top WPL ARI7424A85 Contact Us For Availability
22
Wire Cover-Module WPL 325855 Contact Us For Availability
22
Chrome WPL 324366 Contact Us For Availability
22
White WPL 327867 Contact Us For Availability
22
Coffee WPL 327868 Contact Us For Availability
22
Avocado WPL 327869 Contact Us For Availability
22
Wheat WPL 327870 Contact Us For Availability
22
Almond WPL 327871 Contact Us For Availability
22
Platinum WPL 329847 Contact Us For Availability
22
Toast WPL 329848 Contact Us For Availability
22
Griddle Cover WPL ARI7425A11 Contact Us For Availability
23
Module-Spark Igniter WPL 321965 Contact Us For Availability
23
Knob-Gas Valve (5 Req) WPL 329277 Contact Us For Availability
24
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
24
Name Plate WPL 303098 Contact Us For Availability
25
Clamp-Nylon WPL 109266 Contact Us For Availability
25
Control Panel WPL 310221 Contact Us For Availability
26
Mounting Screw (5 Required-Inc. Key 27) WPL 311455 Contact Us For Availability
26
Bracket-Control Panel (2 Req) WPL 111228 Contact Us For Availability
27
Rubber Gasket (5 Required) WPL 304241 Contact Us For Availability
27
Front Trim WPL 302898 Contact Us For Availability
28
Rubber Gasket (5 Required) WPL 313563 Contact Us For Availability
28
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
29
Gas Valve (4 Required-Inc. Key 28) WPL 313224 Contact Us For Availability
29
Screw 6-32x1/4`` WPL 97220 Contact Us For Availability
30
Switch-Valve (5 Required) WPL 311389 Contact Us For Availability
30
Upper Leaf-Hinge (Lt. or Rt.) WPL 323352 Contact Us For Availability
31
Gas Valve-Griddle (Inc. Key 28) WPL 315190 Contact Us For Availability
31
Lower Leaf-Hinge (Lt. or Rt.) WPL 321869 Contact Us For Availability
32
Rt. Front-Top Burner (Inc. Keys 17 & 18) WPL 310302 Contact Us For Availability
32
Washer WPL 310218 Contact Us For Availability
33
Shield-Top Burner Valve (5 Required) WPL 306589 Contact Us For Availability
33
Top Grate (Optional) WPL 316786 Contact Us For Availability
34
White WPL 325413 Contact Us For Availability
34
Coffee WPL 325414 Contact Us For Availability
34
Avocado WPL 325415 Contact Us For Availability
34
Wheat WPL 325416 Contact Us For Availability
34
Almond WPL 325417 Contact Us For Availability
34
Platinum WPL 329844 Contact Us For Availability
34
Toast WPL 329845 Contact Us For Availability
34
Chrome WPL 329846 Contact Us For Availability
34
Griddle Aeration Pan (Optional) WPL ARI7426A65 Contact Us For Availability
35
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
35

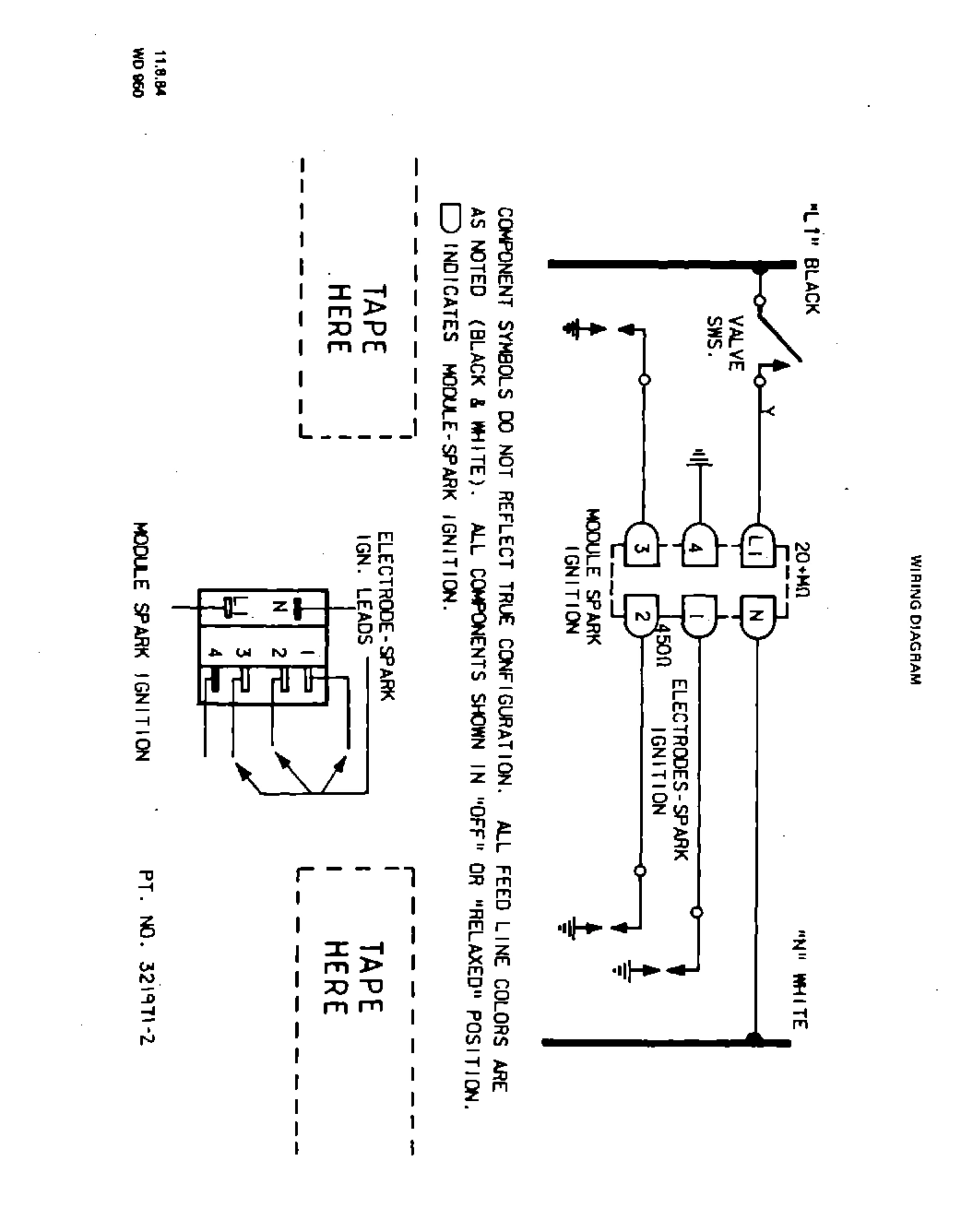

Spark Igniter Module To Cord w/Plug (Green)-1 WPL 310032 Contact Us For Availability
35
Spark Igniter Module To Valve Switches (Yello WPL 313143 Contact Us For Availability
35
Valve Switches WPL 313144 Contact Us For Availability
35
WPL 321995 WPL 321995 Contact Us For Availability
× ![]()
